When sourcing aluminum profiles for architectural, structural, or industrial projects, choosing the correct alloy grade is the single most critical decision you will make. It dictates everything from the mechanical strength and corrosion resistance of your final structure to its aesthetic finish and overall project budget.
Among the 6000-series aluminum alloys—which are alloyed with magnesium and silicon—two grades dominate the global extrusion market: 6061 and 6063.
While they share similar DNA, they serve drastically different engineering purposes. In this ultimate technical guide, the metallurgy experts at Yandi Aluminum break down the differences, mechanical properties, and ideal applications of 6061 vs. 6063 aluminum profiles to help you optimize your next project.
Often referred to as "structural aluminum," 6061 aluminum is one of the most versatile and widely used heat-treatable alloys on the market. Engineered for high-stress applications, it contains a higher concentration of silicon, magnesium, and copper than its 6063 counterpart.
High Yield and Tensile Strength: Built to withstand heavy mechanical loads.
Excellent Machinability: Highly responsive to cutting, drilling, and CNC machining.
Great Weldability: Can be easily welded using standard commercial techniques.
Corrosion Resistance: Offers excellent resistance to atmosphere and seawater, though slightly lower than 6063 due to its trace copper content.
Known universally as "architectural aluminum," 6063 aluminum is optimized specifically for high-precision extrusion. It is designed to yield extremely smooth, intricate shapes with complex cross-sections, making it the premier choice for visual and decorative architectural projects.
Superior Surface Finish: Ideal for high-quality powder coating, anodizing, and electrophoresis.
Excellent Extrudability: Can be pushed into highly intricate, thin-walled, or hollow profile designs.
Maximum Corrosion Resistance: The lower iron and copper content gives it elite defense against environmental weathering.
High Thermal Conductivity: Highly effective at dissipating heat.
To help you understand the precise chemical and mechanical differences, Yandi Aluminum has compiled the core engineering metrics below for both alloys in their most common "T6" temper state (solution heat-treated and artificially aged).
Property / Specification | 6061-T6 Aluminum Alloy | 6063-T6 Aluminum Alloy |
Primary Design Focus | High Structural Strength & Load Bearing | Intricate Extrusion & Premium Surface Aesthetics |
Tensile Strength | High ($290 \text{ MPa} \ / \ 42,000 \text{ psi}$) | Moderate ($186 \text{ MPa} \ / \ 27,000 \text{ psi}$) |
Yield Strength | High ($241 \text{ MPa} \ / \ 35,000 \text{ psi}$) | Moderate ($145 \text{ MPa} \ / \ 21,000 \text{ psi}$) |
Surface Finish Quality | Standard (visible grain/die lines) | Superior (flawless, smooth surface) |
Extrudability | Moderate (limited to simpler shapes) | Elite (handles highly complex, thin-walled geometries) |
Anodizing Response | Good (darker, slightly gray hue) | Excellent (brilliant, highly uniform color) |
If your project demands high structural integrity, 6061-T6 is the undisputed winner. It boasts roughly 50% higher yield strength and 55% higher tensile strength than 6063-T6. For structural framing, heavy-duty machinery, or bridges, 6061 ensures safety under immense pressure.
If your project requires ultra-precise, complex, or multi-hollow profiles—such as custom slim-frame windows, interlocking privacy fence boards, or decorative lattices—6063 is the superior choice. 6061 is much tougher to extrude into intricate or thin-walled shapes without causing surface tearing or micro-cracks during manufacturing.
Surface finish is where 6063 truly shines. Because it contains less iron and copper, it results in an incredibly smooth surface right out of the extrusion press. When anodized or powder-coated, 6063 profiles achieve a highly uniform, flawless cosmetic finish. 6061, while it can be coated, often retains a rougher surface texture and takes on a slightly darker, less vibrant tone when anodized.
Heavy-duty structural frameworks and support beams.
Industrial automation components, conveyor rails, and T-slot framing.
Marine structures, ship components, and aerospace parts.
Truck beds, trailer bodies, and railcar components.
Parts requiring heavy CNC milling and post-extrusion machining.
Premium Aluminum Windows and Doors (especially thermal break systems).
Outdoor perimeter solutions like Aluminum Fences, Privacy Fences, and Decorative Fencing.
Architectural trims, interior moldings, and luxury furniture.
Electrical enclosures, LED lighting tracks, and heat sinks.
Any application where the visual appeal and coating quality are paramount.
At Yandi Aluminum, we understand that no two engineering projects are alike. As a premier global manufacturer of high-quality aluminum profiles, we don't just supply raw materials—we provide customized engineering solutions.

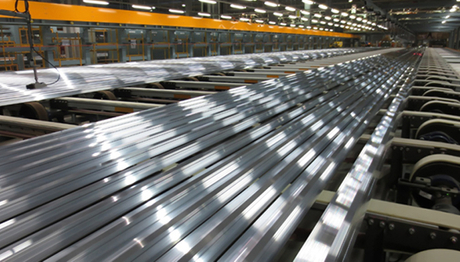

Advanced Extrusion Lines: We operate state-of-the-art extrusion facilities capable of pressing high-tolerance 6061 structural profiles and highly complex, thin-walled 6063 architectural designs.
Flawless Surface Treatment: Yandi Aluminum offers industry-leading in-house powder coating, anodizing, and electrophoresis line finishes to ensure your 6063 profiles match strict architectural standards (including AAMA compliance).
Expert Consultation: Our internal metallurgy and engineering teams work directly with your blueprints to recommend the exact alloy selection and temper adjustment, ensuring you get maximum performance without overpaying for unnecessary material specifications.
Whether you need high-strength industrial 6061 profiles or aesthetically flawless 6063 architectural profiles for your window or fencing systems, Yandi Aluminum has you covered.
[Contact the Yandi Aluminum Engineering Team Today] to request a custom quote, obtain technical material data sheets, or discuss your custom tooling and extrusion requirements!
